Metal Scrap Briquetting Machine

This metal scrap briquetting press is used to make compacted high density cylinder shape briquettes, suitable for briquetting of various metal scraps/cuttings that have plasticity under cold compressing, such as cast iron, steel, aluminum, copper, magnesium, titanium, molybdenum etc.
The use of final briquettes is for direct recycling and smelting in furance, thus reduce production cost efficiently.

Main tech-features:metal scrap briquetting press

  • Eletric part is manipulated by PLC system,strong anti- interference, automatic and easy operation.
  • Tandem type oil cylinder, high velocity of movement and productivity.
  • Monoblock cast steel body, avoiding rupture of weld, stable and long life.
  • User self prepares helix feeder, chain discharge device and guard cove, according to work condition.

Advantages

  • Rugged construction
  • Low wear
  • Low electrical load relative to briquette capacity
  • Reduced costs of handling and shipping
  • Owing to small dimendions, connection to working machines possible
Model G83-160 G83-230 G83-300
Nominal Force (KN) 1600 2300 3000
Briquetting size (kg/m3) ¢90x(60-85) ¢110x(70-120) ¢120x(70-120)
Briquetting density (KG/m3) ≥5200-5400 ≥5200-5400 ≥5200-5400
Work pressure (Mpa) 16 23 21
Production Rate (Cast lron chip) (t/h) 0.6-0.9 1.0-1.5 1.2-1.8
Total Power (KW) 24.2 39.2 47.2
Weight(Kg) 4500 7500 8800
Outside Size (mm) 4100x1086x2006 4100x1086x2006 5000x1600x2600

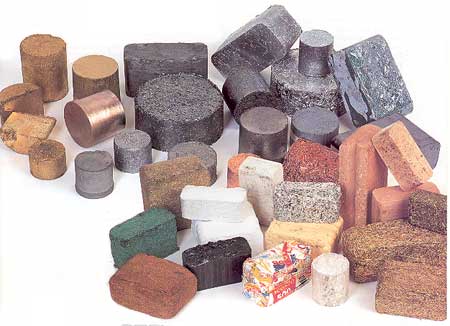

cast-iron-chips steel-chips-briquettes
brass-chips-briquettes aluminum-briquettes
